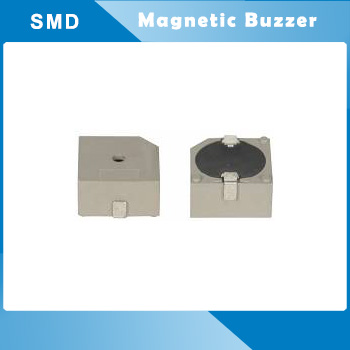

HCT1310X Low Frequency Direct Circuit SMD Buzzer

Type

HCT1310X01

HCT1310X05

HCT1310X12

Rated Voltage        (V)

1.5

5

12

Operating  Voltage  (V)

1.2~3

3~7

8~15

Rated Current     (MA)

< 30

< 30

< 30

Sound Output at10cm(dB)

> 80

> 85

> 85

Resonant Frequency  (Hz)

2400 ± 400

2300  ±300

2300 ±300

Response Time     (ms)

< 50

< 50

< 50

Operating Temperature  (C)

-10~+50

-25~+70

-25~+70

Storage  Temperature  (C)

-15~+60

-30~+80

-30~+80

Weight                (g)

2

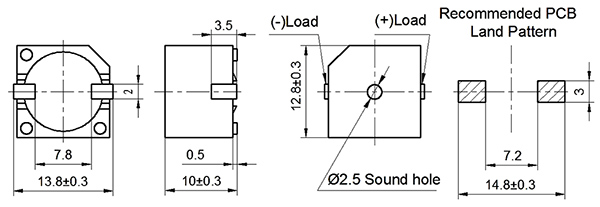

Dimension

12.8*12.8*H10
