 HP1360A External Driven Piezo Buzzer

HP1360A External Driven Piezo Buzzer

  • Product description: HP1360A External Driven Piezo Buzzer ,Without oscillator circuit, the mainly produce piezo ceramic buzzer, 3V buzzer,5V piezo buzzer, small size, low current, pin type buzzer. the mainly production i
  • INQUIRY

HP1360A External Driven Piezo Buzzer,Without oscillator circuit

Transducer Buzzer Datasheet:
Pin termina  Type
External Driven Piezo Transducer Buzzer (Without oscillator circuit)
Dia 13x6mm Worked with 3V p-p 4K Hz,Output 70dB at 10cm

Type

UNIT

HP1360A

*Min. Sound Output at10cm

dB

70

Rated Voltage

Vp-p

3

Operating Voltage

Vp-p

1~30

Resonant Frequency

Hz

4000±500

*Max. Current Consumption

mA

2

Capacitance at 1,000HZ

pF

15000±30%

Operating Temperature

°C

-20~+70

Storage Temperature

°C

-30~+80

Weight

g

1.3


* Value applying at rated voltage

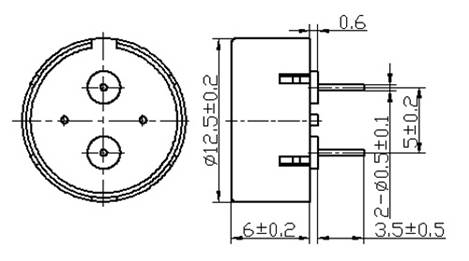

DIMENSIONS     Unit:mm     Tolerance:±0.5
