  • HP2319X Piezo Electric Buzzer

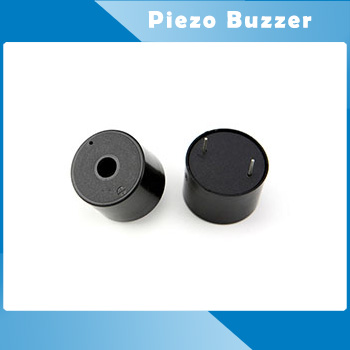

HP2319X Piezo Electric Buzzer

HP2319X Piezo Electric Buzzer

  • Product description: HP2319X 12V DC Piezo Electric Buzzer ,12v piezo electric buzzer with RoHS, small size, low power consumption, high sound pressure .Main application is Air conditioning, refrigerator, alarm and other
  • INQUIRY

Piezo Electric Buzzer HP2319X

Buzzer Datasheet:
Pin termina  Type
Internal Driven Piezo Buzzer (With oscillator circuit)
Dia 23x 19mm Worked with 12V DC, Output 3.5K Hz 85dB at 10cm

Type

UNIT

HP2319X

*Min. Sound Output at10cm

dB

85

Rated Voltage

VDC

12

Operating Voltage

VDC

3~20

Resonant Frequency

Hz

3400±500

*Max. Current Consumption

mA

15

Tone Nature


Continuous

Operating Temperature

°C

-20~+70

Storage Temperature

°C

-30~+80

Weight

g

6

Value applying at rated voltage
DIMENSIONS     Unit:mm     Tolerance:±0.5
